ASTM A801 HiperCo27 High Saturation Induction Soft Magnetic Alloy
Hiperco27 is a high saturation induction soft magnetic alloy from Carpenter, with better flebility and ductility.

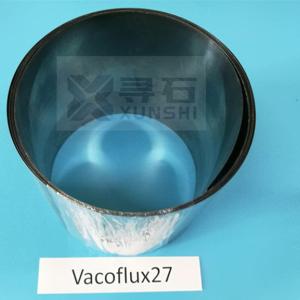

HiperCo27 is named 1J27 in China. It is a new type of soft magnetic alloy in China even it is already widely introduced by the inventor Carpenter, and we are able to provide the HiperCo27 products in forms of cold rolled strip and round bar.
Equal grades
FeCo27,Vacoflux27(VAC),1j27,UNS K92650
Chemical compostions(Weight Percent)
| C | ≤0.030 |
| Mn | ≤0.40 |
| Si | ≤0.35 |
| P | ≤0.015 |
| S | ≤0.015 |
| Cr | ≤0.75 |
| Ni | ≤0.75 |
| Co | 26.5-28.5 |
| V | ≤0.35 |
| Fe | Balance |
Characters
High magnetic saturation
Good mechanical toughness
Good ductility
High saturation induction
High curie temperature
Applications
Motors, generators, pole pieces, relays and magnetic bearing.
Standards
ASTM A801 Standard Specification for Wrought Iron-Cobalt High Magnetic Saturation Alloys (UNS R30005 and K92650)
